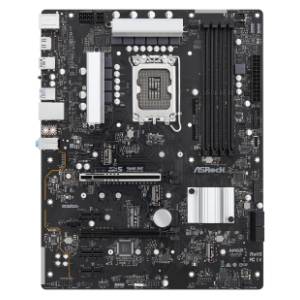

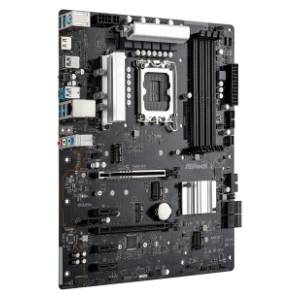

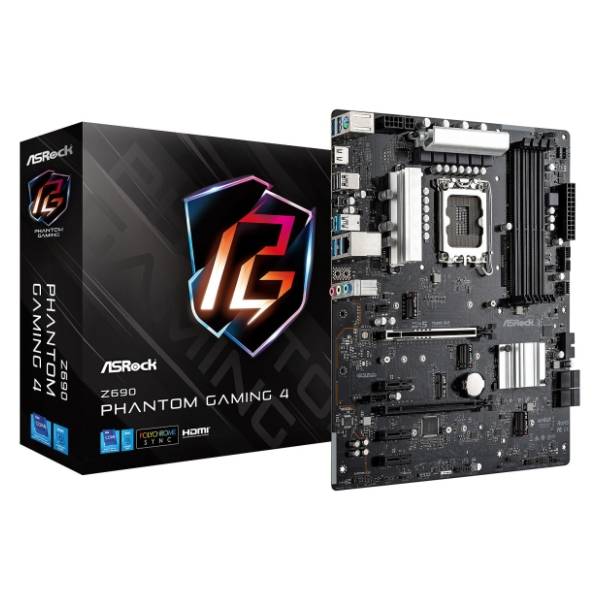

ASRock Z690 Phantom Gaming 4 matična ploča
- Tip
- Intel
- Format matične ploče
- ATX
- Tip RAM memorije
- DDR4
- Gaming
Ovaj proizvod trenutno nije dostupan ni u jednoj prodavnici.
Ne odustajte - evo šta možete kupiti odmah
Proizvod koji tražite trenutno nije u prodaji, ali smo izdvojili slične proizvode iz iste kategorije koji jesu dostupni. Uporedite cene i pronađite najbolju ponudu.
Istorija cene
Najniža (30d)21.443RSD
Najviša (30d)24.999RSD
Prosečna21.558RSD
Trenutna21.443RSD
Najniža (3m)21.443RSD
Najviša (3m)24.999RSD
Prosečna21.482RSD
Trenutna21.443RSD
Najniža (6m)21.443RSD
Najviša (6m)24.999RSD
Prosečna21.639RSD
Trenutna21.443RSD
Najniža (1g)21.260RSD
Najviša (1g)24.999RSD
Prosečna21.690RSD
Trenutna21.443RSD
Za poslovne korisnike: detaljna istorija cena, praćenje konkurencije i izveštavanje.
Saznajte višeSpecifikacija i karakteristike
Težina i dimenzije
- Širina
- 24,4 cm
- Visina
- 30,5 cm
Procesor
- Tip
- Intel
- Socket (Baza)
- Intel 1700
- Serija čipseta
- Intel Z690
- Integrisan procesor
- -
- Broj socket-a
- 1
Vrsta i karakteristike
- Format matične ploče
- ATX
- Gaming
RAM
- Tip RAM memorije
- DDR4
- Maksimalna brzina RAM memorije
- 5.333 MHz
- Broj RAM slotova
- 4
- Maksimalna RAM memorija
- 128 GB
Software
- Kompatibilnost
- Windows 10 64-bit
- Kompatibilnost
- Windows 11 64-bit
- BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support
Zvuk
- 3.5mm
- 1x Mic in
- 3.5mm
- 1x Line in
- 3.5mm
- 1x Line out
- Integrisana zvučna kartica
- Kodeci zvučne kartice
- Realtek ALC897 Audio Codec, 7.1 CH HD Audio, Supports Surge Protection, Nahimic Audio
Grafika
- HDMI
- 1x HDMI 2.1, TMDS, HDCP 2.3
- Integrisana grafička kartica
- -
- Multi GPU podrška
USB
- USB
- 2x USB 2.0
- USB
- 5x USB 3.2
- USB
- 1x USB-C 3.2
Mreža i konekcija
- Wi-Fi
- -
- LAN priključak (Ethernet)
- 1x Intel I219V, Gigabit LAN 10/100/1000 Mb/s, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports UEFI PXE
- Bluetooth
- -
- Integrisana mrežna kartica
Slotovi za proširenje
- PCIe slot
- 1x PCI Express 5.0
- PCIe slot
- 1x PCI Express 4.0
- PCIe slot
- 3x PCI Express 3.0
- Broj PCIe slotova
- 5
Skladištenje
- Broj M.2 slotova
- 3
- Broj SATA slotova
- 4
- RAID kontroler
- Tip RAID-a
- RAID 0
- Tip RAID-a
- RAID 1
- Tip RAID-a
- RAID 5
- Tip RAID-a
- RAID 10
Ostalo
- Hlađenje
- Pasivno
- Ostalo
Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče
CPU: Supports 14th, 13th & 12th Gen Intel® Core™ Processors
9 Power Phase design
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Memory: Supports Intel® Extreme Memory Profile (XMP) 2.0
Slots: 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Multi GPU: Supports AMD CrossFire™
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
BIOS: CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Unique Feature
ASRock Super Alloy:
Premium Power Choke
50A Dr.MOS
Sapphire Black PCB
High Density Glass Fabric PCB
ASRock Steel Slot
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Software:
ASRock Motherboard Utility (Phantom Gaming Tuning)
ASRock Polychrome SYNC
ASRock XFast LAN
UEFI:
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Instant Flash
ASRock Easy RAID Installer
Konektori
- Spisak konektora na zadnjoj strani
3 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone- Spisak internih konektora
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
