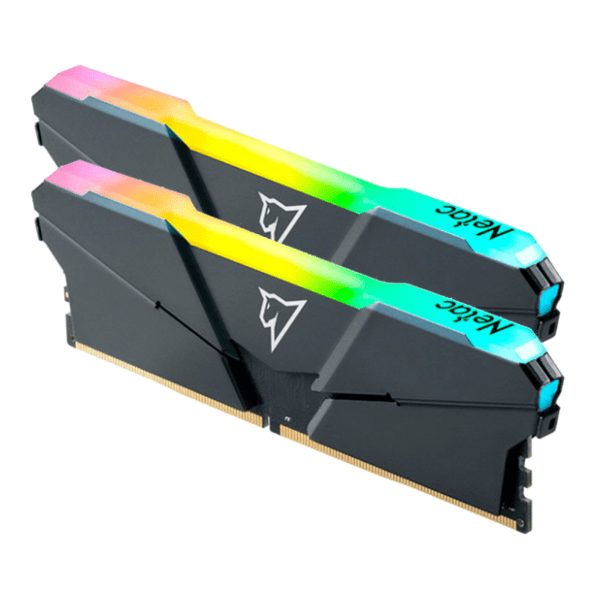

NETAC 16GB (2 x 8GB) DDR4 3600MHz NTSRD4P36DP-16E

Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS).

288-pin DIMM form factor with gold contact fingers..

JEDEC Standard
Adjustable RGB lighting effects
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
On-board I2 serial presence-detect (SPD) EEPROM
Selectable BC4 or BL8 on-the-fly (OTF)
Databus write cyclic redundancy check (CRC)
Temperature controlled refresh (TCR)
Command/Address (CA) parity
Per DRAM Addressability is supported
8 bit pre-fetch
Fly-by topology
Command/Address latency (CAL)
Terminated control command and address bus
PCB: Height 1.23” (31.25mm)
Gold edge contacts
RoHS Compliant and Halogen-Free
Storage temperature: -55  do +100 °C
