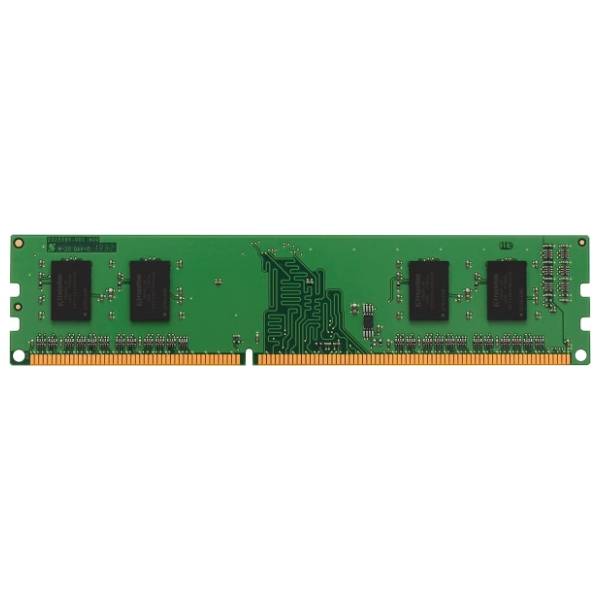

KINGSTON 4GB DDR4 2666MHz KVR26N19S6/4

SPD programmed to JEDEC standard DDR4-2666 latency.

Uses four 512M x 16-bit FBGA components.

Supports various voltage specifications for VDD, VDDQ, VPP, VDDSPD.

Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals.

Dimensions: 133.3 x 31.2 mm
Low power and automatic self-refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ signal generation and calibration
I2 serial presence-detect (SPD) EEPROM on the module
Selectable BC4 or BL8 on-the-fly (OTF).
Fly-by topology
RoHS compliant and halogen-free
Gold-plated contacts
Row Cycle Time (tRCmin): 45.75ns(min.)
Refresh to Active/Refresh
Command Time (tRFCmin):  350ns(min.)
Row Active Time (tRASmin): 32ns (min.)
UL Rating: 94 V - 0
Storage Temperature: -55°C to +100°C
Maximum Operating Power: TBD W*
