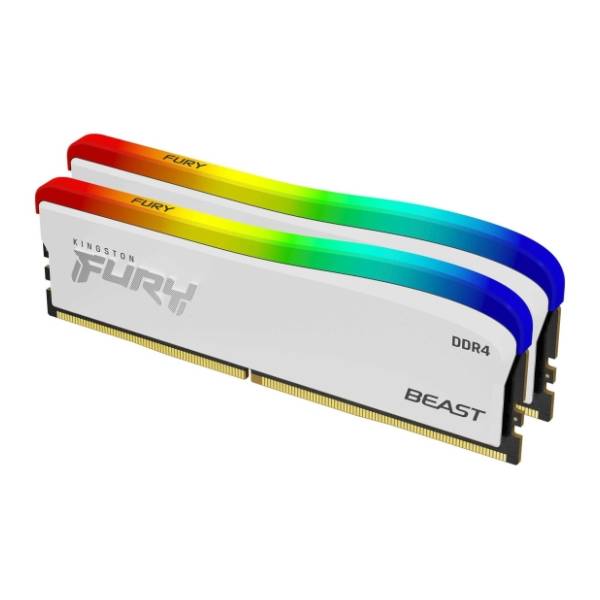

KINGSTON 32GB (2 x 16GB) DDR4 3200MHz KF432C16BWAK2/32 Special Edition

Components: Eight 2G x 8-bit FBGA components per module.

Tested Speed: DDR4-3200 with low latency timing of 16-20-20.

SPD Latency Timing: JEDEC standard DDR4-2400 timing of 17-17-17.

JEDEC Standard: Electrical and mechanical specifications as per JEDEC standard.

Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop).

Dimensions: 133 x 46 x 8 mm
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
On-Die termination (ODT)
16 internal banks; 4 groups of 4 banks each
Bi-Directional Differential Data Strobe
8 bit pre-fetch
Contact: Gold contact fingers
Row Cycle Time (tRCmin): 45.75ns(min.)
Refresh to Active/Refresh
Command Time (tRFCmin): 350ns(min.)
Row Active Time (tRASmin): 32ns (min.)
UL Rating: 94 V - 0
Storage Temperature: -40°C to +85°C
Default (JEDEC): DDR4-2400 CL17-17-17 @ 1.2V
XMP Profile #1: DDR4-3200 CL16-20-20 @ 1.35V
XMP Profile #2: DDR4-3000 CL16-19-19 @ 1.35
Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0
