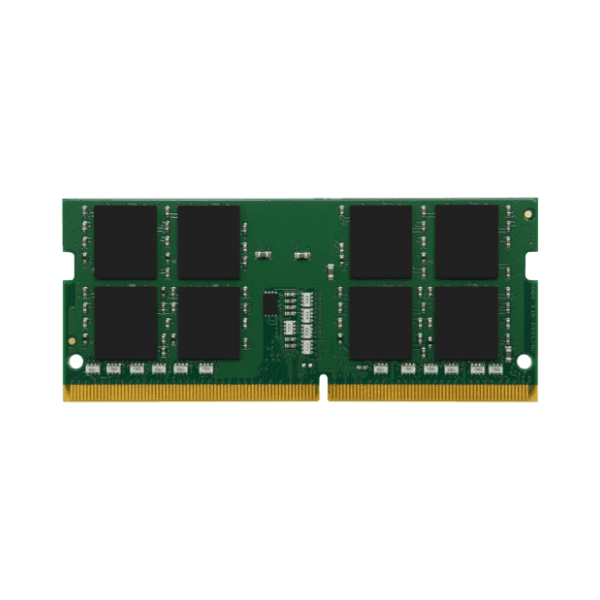

KINGSTON 16GB DDR4 3200MHz KVR32S22D8/16

On-die termination (ODT) for data, strobe, and mask signals.

Fixed burst chop (BC) of 4 and burst length (BL) of 8 via MRS.

SPD Latency: JEDEC standard DDR4-3200 timing of 22-22-22 at 1.2V.

VPP: 2.5V, VDDSPD: 2.2V to 3.6V
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Dual-rank support
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB height: 1.18" (30.00mm)
RoHS Compliant and Halogen-Free
DIMM with gold contact fingers
JEDEC standard compliance
Row Cycle Time (tRCmin): 45.75ns(min.)
Refresh to Active/Refresh
Command Time (tRFCmin): 350ns(min.)
Row Active Time (tRASmin): 32ns (min.)
UL Rating: 94 V - 0
Storage Temperature: -55°C to +100°C
