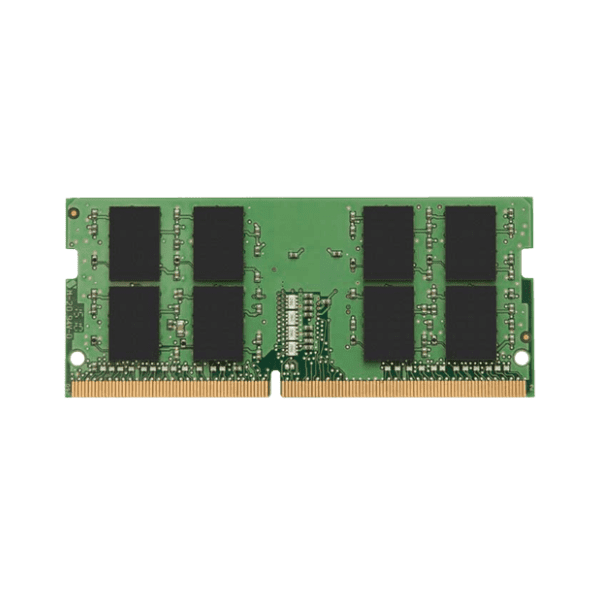

KINGSTON 16GB DDR4 2666MHz KVR26S19S8/16

The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V.

Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS).

Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals.

PCB: Height 1.18” (30.00mm)
DIMM with gold contact fingers
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
RoHS Compliant and Halogen-Free
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Single-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Row Cycle Time (tRCmin): 45.75ns(min.)
Refresh to Active/Refresh
Command Time (tRFCmin): 350ns(min.)
Row Active Time (tRASmin): 32ns (min.)
UL Rating: 94 V - 0
Storage Temperature: -55°C to +100°C
