- RAM memorije

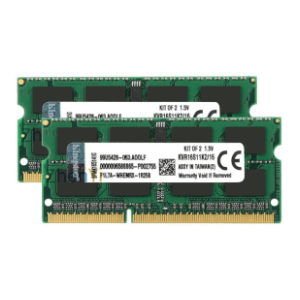

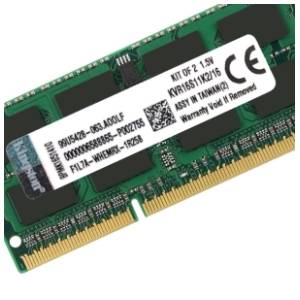

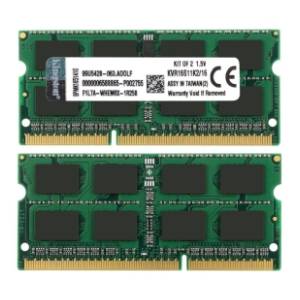

- KINGSTON 16GB (2 x 8GB) DDR3 1600MHz KVR16S11K2/16
Ovaj proizvod trenutno nije dostupan ni u jednoj prodavnici.
Ne odustajte - evo šta možete kupiti odmah
Proizvod koji tražite trenutno nije u prodaji, ali smo izdvojili slične proizvode iz iste kategorije koji jesu dostupni. Uporedite cene i pronađite najbolju ponudu.
Istorija cene
Za poslovne korisnike: detaljna istorija cena, praćenje konkurencije i izveštavanje.
Saznajte višeSpecifikacija i karakteristike
Dizajn i materijali
- Oblik
- SO-DIMM
- RGB osvetljenje
- -
Performanse i tehničke informacije
- Kapacitet (RAM)
- 2x 8 GB
- Latencija
- CL 11
- Maksimalna brzina (frekvencija)
- 1.600 MHz
- Brzina prenosa
- 1.600 MT/s
- Temperaturni raspon rada
- 0° C do 85° C
- Napon
- 1,5 V
- Organizacija memorijskih čipova
- 2Rx8
- Broj kontakata
- 204 pin
- Ostalo
Burst Length: 8 (Interleave without any limit, sequential with
starting address “000” only), 4 with tCCD = 4 which does not
allow seamless read or write [either on the fly using A12 or
MRS].
Internal(self) calibration : Internal self calibration through ZQ
pin (RZQ : 240 ohm ± 1%).
Average Refresh Period 7.8us at lower than TCASE 85°C,
3.9us at 85°C < TCASE < 95°C.
PCB : Height 1.180” (30.00mm), double sided component.
Components: Sixteen 512M x 8-bit FBGA components per module.
SPD Latency Timing: JEDEC standard DDR3-1600, 11-11-11.
Organization: 1G x 64-bit (8GB) per module
Asynchronous Reset
Contact: Gold contact fingers
Bi-directional Differential Data Strobe
Row Cycle Time (tRCmin): 48.125ns (min.)
Refresh to Active/Refresh
Command Time (tRFCmin): 260ns (min.)
Row Active Time (tRASmin): 35ns (min.)
Maximum Operating Power: 2.580 W* (per module)
UL Rating: 94 V - 0
Storage Temperature: -55°C to +100°C
JEDEC standard 1.5V Power Supply
VDDQ = 1.5V (1.425V ~ 1.575V)
800MHz fCK for 1600Mb/sec/pin
8 independent internal bank
Programmable CAS Latency: 11, 10, 9, 8, 7, 6
Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
8-bit pre-fetch
On Die Termination using ODT pin
Oprema, elementi i sastavni delovi
- Broj modula
- 2
Vrsta i karakteristike
- Tip
- DDR3
Tehnologije
- ECC
- -
Model
- Serija
- ValueRAM
