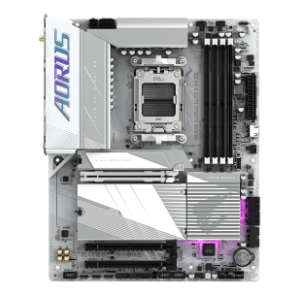

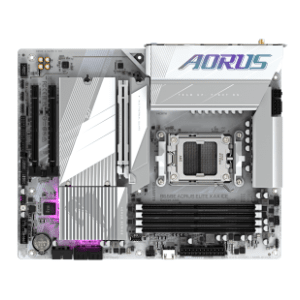

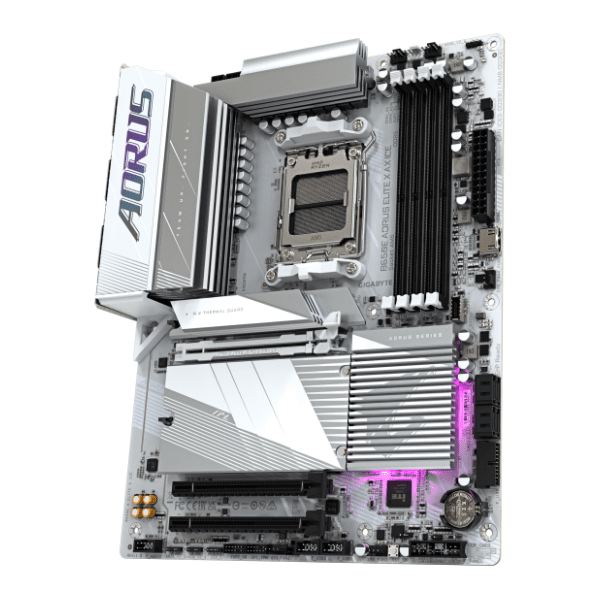

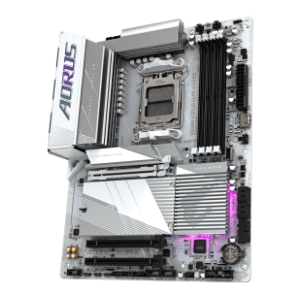

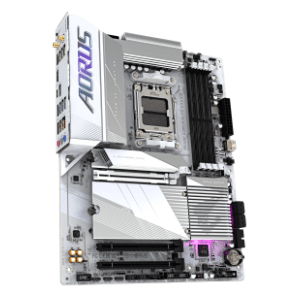

GIGABYTE B650E AORUS ELITE X AX ICE (rev. 1.x) matična ploča
- Tip
- AMD
- Format matične ploče
- ATX
- Tip RAM memorije
- DDR5
- Gaming
Ovaj proizvod trenutno nije dostupan ni u jednoj prodavnici.
Ne odustajte - evo šta možete kupiti odmah
Proizvod koji tražite trenutno nije u prodaji, ali smo izdvojili slične proizvode iz iste kategorije koji jesu dostupni. Uporedite cene i pronađite najbolju ponudu.
Istorija cene
Najniža (30d)22.934RSD
Najviša (30d)22.934RSD
Prosečna22.934RSD
Trenutna22.934RSD
Najniža (3m)22.934RSD
Najviša (3m)22.934RSD
Prosečna22.934RSD
Trenutna22.934RSD
Najniža (6m)20.699RSD
Najviša (6m)29.060RSD
Prosečna23.195RSD
Trenutna22.934RSD
Najniža (1g)20.699RSD
Najviša (1g)29.060RSD
Prosečna24.412RSD
Trenutna22.934RSD
Za poslovne korisnike: detaljna istorija cena, praćenje konkurencije i izveštavanje.
Saznajte višeSpecifikacija i karakteristike
Težina i dimenzije
- Širina
- 24,4 cm
- Visina
- 30,5 cm
Procesor
- Tip
- AMD
- Socket (Baza)
- AMD AM5
- Serija čipseta
- AMD B650
- Integrisan procesor
- -
- Broj socket-a
- 1
Vrsta i karakteristike
- Format matične ploče
- ATX
- Gaming
RAM
- Tip RAM memorije
- DDR5
- Maksimalna brzina RAM memorije
- 4.400 MHz
- Maksimalna brzina RAM memorije
- 8.000 MHz
- Broj RAM slotova
- 4
- Maksimalna RAM memorija
- 192 GB
- Brzina prenosa
- 4.400 MT/s
- Brzina prenosa
- 8.000 MT/s
Software
- Kompatibilnost
- Windows 10 64-bit
- Kompatibilnost
- Windows 11 64-bit
- BIOS
- 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Mreža i konekcija
- Wi-Fi
- LAN priključak (Ethernet)
- 1x Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Bluetooth
- Integrisana mrežna kartica
- Bluetooth verzija
- Bluetooth 5.3
- Wi-Fi standardi
- Realtek Wi-Fi 6E RTL8852CE, WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- Wi-Fi standardi
- Support for 11ax 160MHz wireless standard
Grafika
- DisplayPort
- 1x DisplayPort 1.4 over USB-C
- HDMI
- 1x HDMI 2.1, TMDS, HDCP 2.3
- Integrisana grafička kartica
- -
USB
- USB
- 4x USB 2.0
- USB
- 7x USB 3.2
- USB
- 1x USB-C 3.2
Zvuk
- 3.5mm
- 1x Mic in
- 3.5mm
- 1x Line in
- 3.5mm
- 1x Line out
- Integrisana zvučna kartica
- Kodeci zvučne kartice
- Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
Skladištenje
- Broj M.2 slotova
- 3
- Broj SATA slotova
- 4
- RAID kontroler
- Tip RAID-a
- RAID 0
- Tip RAID-a
- RAID 1
- Tip RAID-a
- RAID 10
Slotovi za proširenje
- Broj PCIe slotova
- 3
- PCIe slot
- 1x PCI Express 5.0
- PCIe slot
- 2x PCI Express 3.0
Ostalo
- Hlađenje
- Pasivno
- TPM 2.0
- Ostalo
Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče
CPU support for:AMD Ryzen™ 7000 Series Processors/AMD Ryzen™ 8000 Series Processors
Memory: Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Digital twin 12+2+2 phases VRM solution
EZ-Latch Click: M.2 heatsinks with screwless design
EZ-Latch Plus: M.2 slots with Quick Release & Screwless Design
Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard XL
Onboard Graphics: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, HDMI 2.1
1 x HDMI port, supporting a maximum resolution of 1920x1080@30 Hz, HDMI 1.4
1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz, DisplayPort 1.4, HDR
Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset: 2 x PCI Express x16 slot, , supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Support for GIGABYTE Control Center (GCC), H/W Monitoring
Konektori
- Spisak konektora na zadnjoj strani
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks- Spisak internih konektora
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
* Only available with the AMD Radeon™ Graphics Processors.
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Uputstvo za upotrebu i dokumentacija
Uputstvo za upotrebu (EN)Preuzmite
