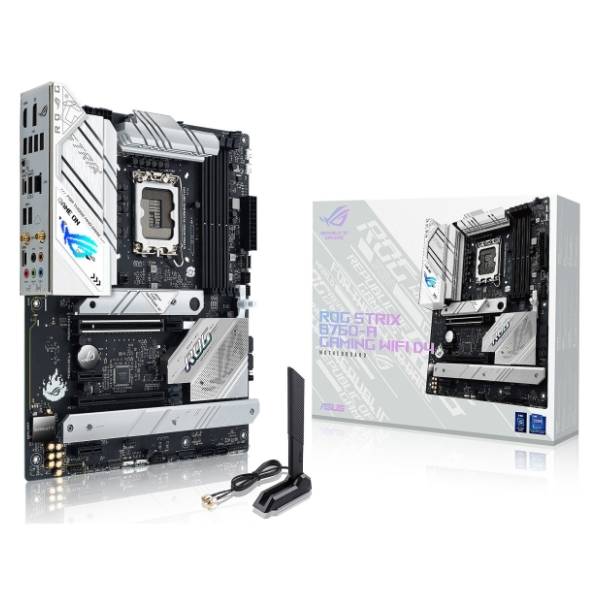

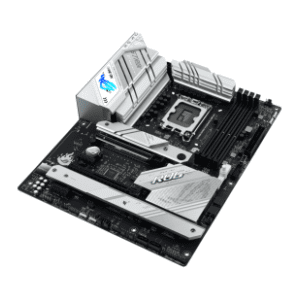

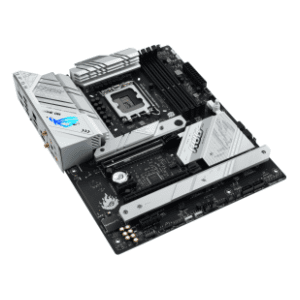

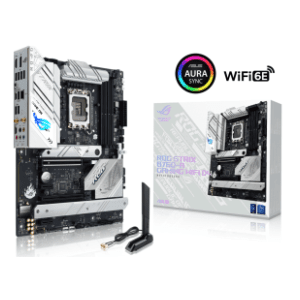

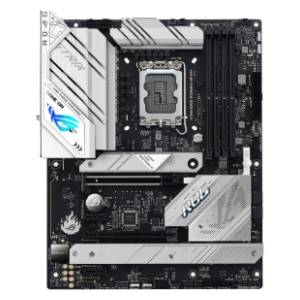

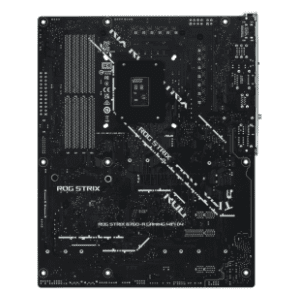

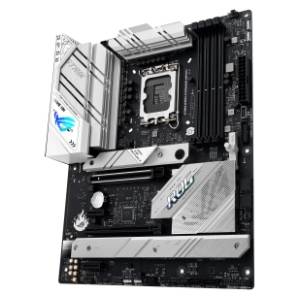

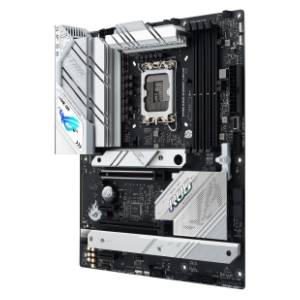

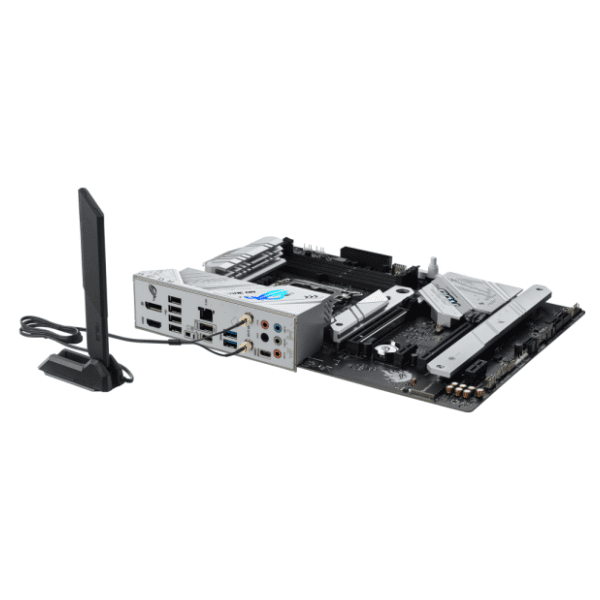

ASUS ROG STRIX B760-A GAMING WIFI D4 matična ploča
- Tip
- Intel
- Format matične ploče
- ATX
- Tip RAM memorije
- DDR4
- Gaming
Ovaj proizvod trenutno nije dostupan ni u jednoj prodavnici.
Ne odustajte - evo šta možete kupiti odmah
Proizvod koji tražite trenutno nije u prodaji, ali smo izdvojili slične proizvode iz iste kategorije koji jesu dostupni. Uporedite cene i pronađite najbolju ponudu.
Istorija cene
Najniža (30d)22.990RSD
Najviša (30d)22.990RSD
Prosečna22.990RSD
Trenutna22.990RSD
Najniža (3m)22.990RSD
Najviša (3m)23.655RSD
Prosečna23.392RSD
Trenutna22.990RSD
Najniža (6m)22.990RSD
Najviša (6m)31.999RSD
Prosečna23.842RSD
Trenutna22.990RSD
Najniža (1g)22.990RSD
Najviša (1g)31.999RSD
Prosečna24.059RSD
Trenutna22.990RSD
Za poslovne korisnike: detaljna istorija cena, praćenje konkurencije i izveštavanje.
Saznajte višeSpecifikacija i karakteristike
Težina i dimenzije
- Širina
- 24,4 cm
- Visina
- 30,5 cm
Procesor
- Tip
- Intel
- Socket (Baza)
- Intel 1700
- Serija čipseta
- Intel B760
- Integrisan procesor
- -
- Broj socket-a
- 1
Vrsta i karakteristike
- Format matične ploče
- ATX
- Gaming
RAM
- Tip RAM memorije
- DDR4
- Maksimalna brzina RAM memorije
- 2.133 MHz
- Maksimalna brzina RAM memorije
- 5.333 MHz
- Broj RAM slotova
- 4
- Maksimalna RAM memorija
- 128 GB
Software
- Kompatibilnost
- Windows 10 64-bit
- Kompatibilnost
- Windows 11 64-bit
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
Zvuk
- S/PDIF
- 1x S/PDIF Out (internal)
- 3.5mm
- 1x Mic in
- 3.5mm
- 1x Line in
- 3.5mm
- 1x Line out
- 3.5mm
- 1x Rear port
- 3.5mm
- 1x C/Sub port
- Integrisana zvučna kartica
- Kodeci zvučne kartice
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Grafika
- HDMI
- 1x HDMI 2.1
- DisplayPort
- 1x DisplayPort 1.4
USB
- USB
- 4x USB 2.0
- USB
- 2x USB-C 3.2
- USB
- 3x USB 3.2
Mreža i konekcija
- Wi-Fi
- LAN priključak (Ethernet)
- 1x Intel 2.5Gb Ethernet, ASUS LANGuard // TUF LANGuard
- Bluetooth
- Integrisana mrežna kartica
- Wi-Fi standardi
- Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band
- Bluetooth verzija
- Bluetooth 5.3
Slotovi za proširenje
- PCIe slot
- 1x PCI Express 5.0
- PCIe slot
- 3x PCI Express 3.0
- Broj PCIe slotova
- 4
Skladištenje
- Broj M.2 slotova
- 3
- Broj SATA slotova
- 4
- RAID kontroler
- Tip RAID-a
- RAID 0
- Tip RAID-a
- RAID 1
- Tip RAID-a
- RAID 5
- Tip RAID-a
- RAID 10
Ostalo
- Hlađenje
- Pasivno
- Ostalo
Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče
CPU: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0, Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
Memory: Supports Intel® Extreme Memory Profile (XMP), OptiMem II
Expansion Slots:
Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
2 x PCIe 3.0 x1 slots
Storage: Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
Audio: - Impedance sense for front and rear headphone outputs
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
Supports up to 32-Bit/384 kHz playback
Audio Features
SupremeFX Shielding Technology
Savitech SV3H712 AMP
Premium audio capacitors
Dedicated audio PCB layers
Audio cover
*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis- Ostalo
Special Features:
Extreme Engine Digi+
5K Black Metallic Capacitors
ASUS Q-Design:
M.2 Q-Latch
PCIe Slot Q-Release
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution:
VRM heatsink design
ASUS EZ DIY:
BIOS FlashBack™ button
BIOS FlashBack™ LED
CPU Socket lever protector
ProCool
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Aura Sync:
Aura RGB header
Addressable Gen 2 headers
ROG Exclusive Software
GameFirst VI
ROG CPU-Z
Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
Sonic Radar III
DTS® Sound Unbound
ASUS Exclusive Software:
Armoury Crate
AIDA64 Extreme (60 days free trial)
Aura Creator
Aura Sync
Fan Xpert 4
Power Saving
Two-Way AI Noise Cancellation
AI Suite 3
DIGI+ VRM
PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS:
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
Konektori
- Spisak konektora na zadnjoj strani
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button- Spisak internih konektora
Fan and Cooling related:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related:
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related:
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB:
1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
Miscellaneous:
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-5 pin System Panel header
1 x Thunderbolt™ (USB4®) header
